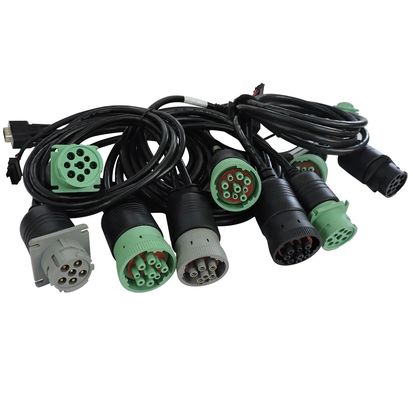

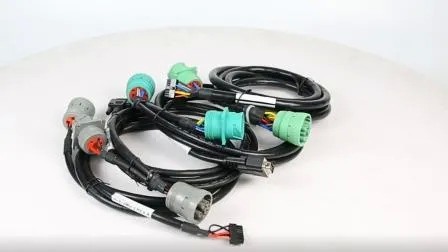

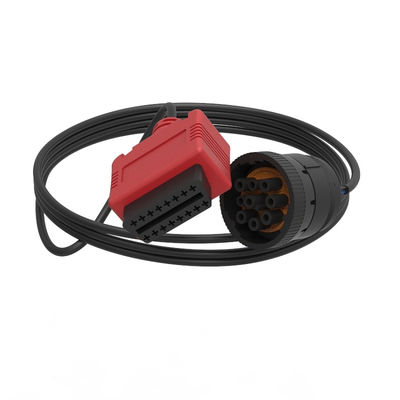

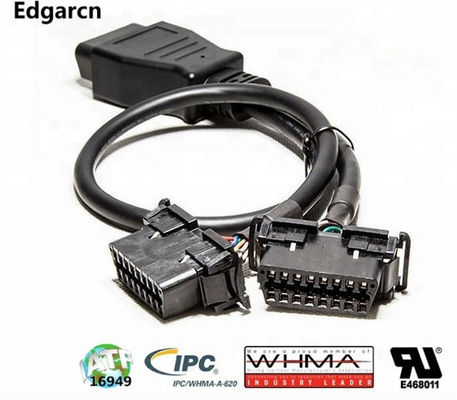

Premium J1939 OBD 9pin and J1962 16pin Truck Wiring Harness with IP68 Waterproof Deutsch Connector
Thông tin chi tiết sản phẩm:
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 10.000 |
|---|---|
| Giá bán: | 10 |
|
Thông tin chi tiết |
|||
| Mô hình không.: | J1939OBD 9pin và J1962 16pin | Quyền lực: | 85W |
|---|---|---|---|
| Thương hiệu đầu nối: | Tiếng Đức J1939 HD-16-9-1939s-P080 | Điện áp: | 12V / 24V |
| Chiều dài: | Tùy chỉnh | Nhiệt độ hoạt động: | -40 đến +125°C |
| Khả năng chống rung: | 20 g ở 10-2000Hz | Xếp hạng IP: | IP68 |
| Độ sâu không thấm nước: | 1,2 mét trong 24 giờ | Loại thiết bị đầu cuối: | 1060-16-0122 |
| Loại dây: | UL 1007 18 # / 16 # | Giữ liên lạc: | 20 lbs |
| Kéo dài: | >20LBS (18#) / >25LBS (16#) | Mô hình thất bại: | Hư hỏng dây / Grommet bị hỏng |
| Kích thước gói vận chuyển: | 40*30*23Cm | ||
| Làm nổi bật: | J1939 OBD 9pin Truck Wiring Harness,J1962 16pin Truck Wiring Harness,IP68 Waterproof Truck Wiring Harness |
||
Mô tả sản phẩm
The EDG-HD series is an environmentally sealed silicone rubber, thermoplastic cylindrical connector designed for faster, easier, trouble-free assembly in heavy-duty diagnostic applications for trucks, buses, cross-country vehicles, cranes, and forklifts. When mated, the contacts are protected from water, dust, lubricating oils, fuel, road salt, grease, mud, and other contaminants.
- Operating temperature range: -40°C to +125°C with no cracking, chipping, or leaking after 20 test cycles
- Withstands sinusoidal vibration levels of 20 G's at 10-2000Hz in three mutually perpendicular planes for 2 hours
- IP68 waterproof rating - withstands immersion under 1.2 meters of water for 24 hours
| Terminal Type | Wire Type | Contact Retention | Ref Crimp Tensile | Failure Model |
|---|---|---|---|---|
| 1060-16-0122 | UL 1007 18# | 20 LBS | >20 LBS | Wire damage |
| 1060-16-0122 | UL 1007 16# | 20 LBS | >25 LBS | Grommet broken |
| Terminal Type | Wire Type | Contact Retention | Ref Crimp Tensile | Failure Model |
|---|---|---|---|---|
| 1060-16-0122 | UL 1007 18# | 20 LBS | >20 LBS | Wire damage |
| 1060-16-0122 | UL 1007 16# | 20 LBS | >25 LBS | Grommet broken |
Packaging details can be customized to client specifications. Standard lead times:
| Quantity (PCS) | 1 - 1000 | 1001 - 5000 | >5000 | Mold/Tooling |
|---|---|---|---|---|
| Est. Time (Days) | 20 | 25 | To be negotiated | 30 days more |
International shipping available via DHL, UPS, FedEx, TNT, ARAMEX, EMS, or by air/sea according to customer preference.
A: Yes, we are an ODM/OEM company specializing in wire harness and cable assembly since 1999.
A: We provide initial sketches for discussion, then begin detailed drawings after order confirmation.
A: Our quality team responds within 72 hours to resolve any issues, as we prioritize long-term customer relationships.
A: Yes, we maintain over 1000 molds and 5000+ products developed through our 20+ years of wire harness specialization.
